Coastal areas, riverbanks, and lakeshores are constantly exposed to the natural forces of water erosion, tidal fluctuations, and storm surges. Over time, these forces can compromise the stability of landforms, infrastructure, and even entire communities. One of the most effective and time-tested methods to mitigate shoreline erosion is rock revetment construction.
This blog post explores what rock revetments are, how they work, the process of construction, materials involved, advantages, and important considerations in designing a successful revetment structure.
What is Rock Revetment?

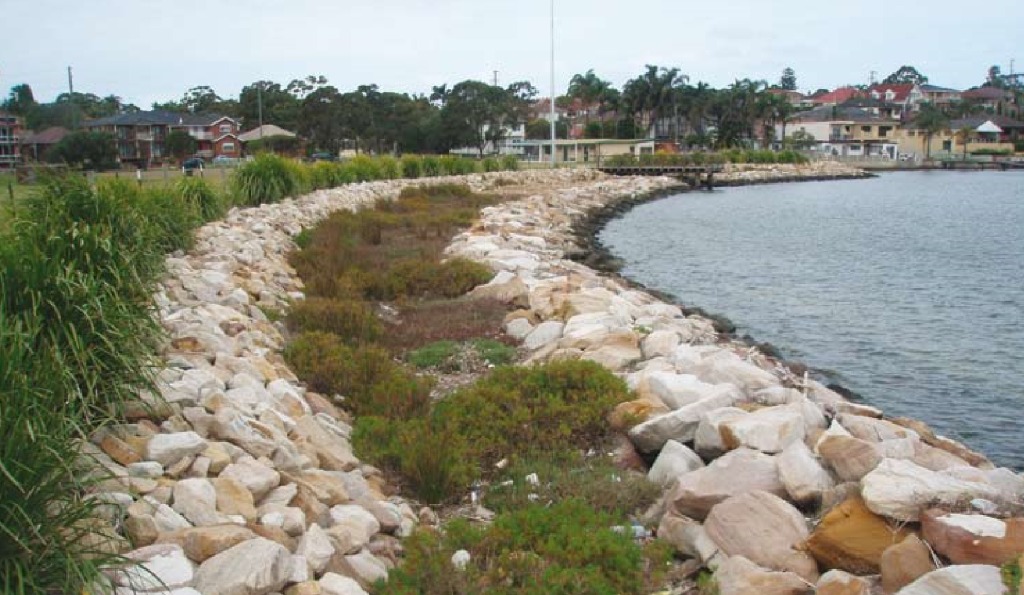

A rock revetment is a sloped structure built along shorelines, riverbanks, or embankments using layers of large stones or rock (commonly referred to as "riprap"). These rocks absorb and deflect the energy of incoming water, helping to prevent soil erosion and shoreline retreat.
Unlike seawalls or bulkheads, revetments are more flexible and natural in appearance. They allow some water flow and accommodate minor movement without losing their effectiveness.
Purpose of Rock Revetment Construction
Rock revetments serve several critical purposes in both urban and rural environments:
- Erosion Control: They prevent soil loss caused by wave action, currents, or flooding.
- Shoreline Stabilization: Revetments help retain the original shape of coastlines and riverbanks.
- Infrastructure Protection: Roads, bridges, and buildings near water bodies are shielded from water damage.
- Environmental Benefits: When designed thoughtfully, rock revetments can create habitats for marine and coastal species.
Types of Rock Revetments
Rock revetments are not one-size-fits-all. Depending on the local environment and engineering requirements, different types can be used:
1. Graded Rock Revetment
This involves layers of rocks of varying sizes. Smaller rocks fill voids between larger stones to reduce water penetration and improve stability.
2. Uniform Rock Revetment
Only one size of rock is used. While simpler to design and install, uniform rock layers can be less stable under extreme conditions.
3. Articulated Revetment Systems
These incorporate pre-cast concrete units or flexible mesh to hold rocks in place. They offer higher resistance in high-energy environments.
Materials Used in Rock Revetment
The success of a rock revetment depends largely on the materials used. Key components include:
1. Armor Stone (Riprap)
These are large, durable rocks that form the outermost layer of the revetment. They must be heavy enough to resist being displaced by waves or currents.
2. Filter Layer
This layer lies beneath the armor stones. It typically includes gravel or geotextile fabric to prevent soil from washing out while allowing water to pass through.
3. Toe Protection
A buried row of rocks at the base (toe) of the slope prevents undermining caused by wave scour.
Step-by-Step Process of Rock Revetment Construction
Building a rock revetment requires meticulous planning and precise execution. Below is a typical sequence:
1. Site Assessment
Engineers begin by surveying the site to understand soil conditions, wave dynamics, erosion patterns, and water levels. This step is essential to determine the appropriate design parameters.
2. Design Development
Based on the site assessment, a custom design is created. This includes slope gradient (usually between 1:1.5 to 1:3), thickness of rock layers, and selection of materials.
3. Site Preparation
The shoreline or riverbank is cleared of vegetation and debris. Excavation may be required to form a stable foundation.
4. Installation of Filter Layer
Geotextile fabric or graded gravel is placed to form the filter layer. This helps control seepage and prevent soil erosion from underneath the structure.
5. Placement of Armor Stones
Large stones are placed starting from the toe and working upward. Placement is done carefully, often by crane or excavator, to achieve interlocking and minimize voids.
6. Toe Protection Installation
Additional stones are buried at the toe of the revetment to resist wave scour and anchor the slope.
7. Quality Check and Monitoring
Post-construction inspections ensure structural integrity and proper alignment. Over time, periodic monitoring may be necessary to identify any need for maintenance.
Key Design Considerations
Designing an effective revetment is both an art and a science. Several factors influence its long-term success:
- Wave Height and Energy: Areas with high wave action require larger and more robust rock armor.
- Slope Angle: A gentler slope (e.g., 1:2) allows better energy dissipation but requires more material.
- Rock Durability: Stones must resist weathering, freeze-thaw cycles, and water exposure.
- Access and Equipment: Limited access to the site can affect construction method and cost.
- Environmental Regulations: Local authorities may require permits or environmental impact assessments.
Advantages of Rock Revetment Construction
Rock revetments are favored in many shoreline protection projects due to several compelling benefits:
1. Durability
When constructed properly, rock revetments can last for decades with minimal maintenance. The use of natural stone adds strength and resilience against natural forces.
2. Cost-Effective Over Time
Although initial installation can be expensive, the longevity and low maintenance requirements offer good long-term value.
3. Environmentally Friendly
Unlike concrete seawalls, rock revetments allow for water flow, sediment movement, and even plant growth, making them more compatible with natural ecosystems.
4. Aesthetic Appeal
The use of natural stones blends the revetment with the surrounding landscape, offering a more pleasing visual appearance compared to artificial structures.
5. Flexibility
Revetments can adjust to minor shifts in soil or water movement without complete failure, unlike rigid structures.
Limitations and Challenges
Despite their many benefits, rock revetments also come with certain challenges:
- Heavy Material Handling: Transporting and placing large stones requires specialized equipment and skilled operators.
- High Initial Cost: Material sourcing and installation are capital-intensive, especially in remote areas.
- Land Use Impact: Rock revetments occupy more space compared to vertical walls, which may be a constraint in urban environments.
- Limited Protection in Extreme Events: In case of very high storm surges or rising sea levels, revetments may require reinforcement or combination with other defenses.
Maintenance and Monitoring
Maintenance is crucial to the long-term performance of any shoreline protection system. For rock revetments:
- Visual Inspections: Regular checks after storms or high tide events help identify displaced rocks or signs of erosion.
- Repositioning Stones: If rocks shift significantly, re-placement may be needed to restore slope stability.
- Vegetation Management: Controlling plant growth between rocks can help maintain structure integrity without blocking drainage.
- Sediment Accumulation Checks: Periodic assessment of sediment buildup around the structure ensures proper water flow and performance.
Real-World Applications
Rock revetment construction is used in diverse settings, such as:
- Coastal Protection: In areas prone to hurricanes or strong wave activity.
- Riverbank Stabilization: To prevent erosion along river bends and flood zones.
- Infrastructure Safety: Near roads, bridges, and ports adjacent to water bodies.
- Wetland Restoration Projects: To create and protect habitat zones.
Conclusion
Rock revetment construction remains one of the most trusted and effective methods for protecting shorelines and embankments from erosion and wave damage. Its natural appearance, durability, and adaptability make it a preferred choice among engineers, contractors, and environmental planners alike.
Whether protecting a bustling coastal highway or stabilizing a peaceful lakeshore, rock revetments serve as a resilient barrier between water’s relentless forces and the land we aim to preserve.
Investing in proper planning, quality materials, and expert execution ensures that rock revetments will continue to protect valuable land and infrastructure for generations to come.
